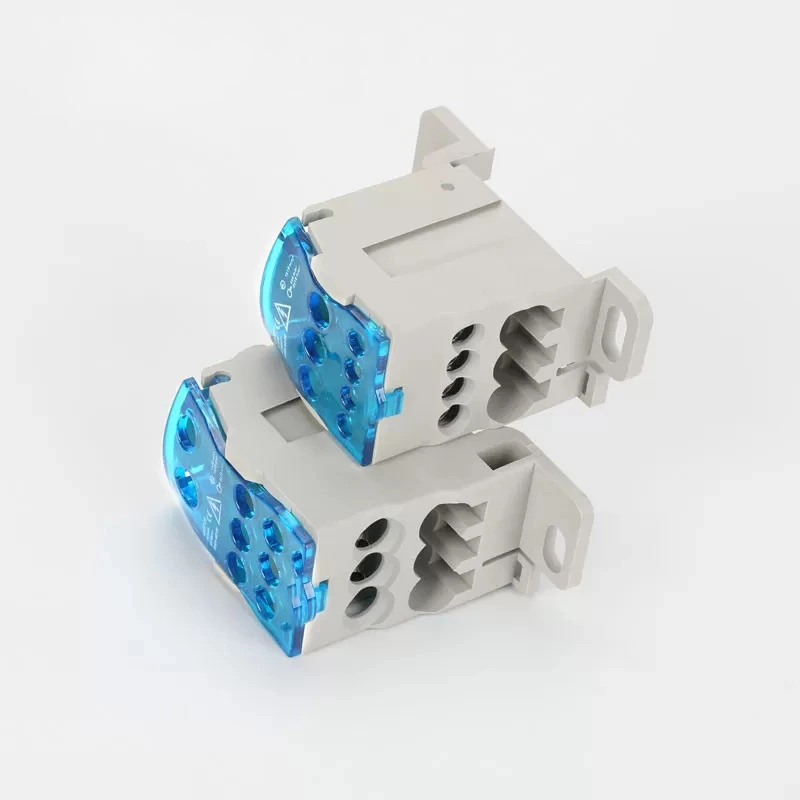

Distribution Box Din Rail Terminal Block UKK Series
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
Distribution Box Din Rail Terminal Block UKK Series
The UKK din rail terminal block distribution box is used to branch the main line,and connect the distribution cable or optical to the user line.Generally,it is used with the din rail for distribution cabinet,distribution box and various high voltage cabinet.
Product Overview
| Original | China |
| Item code | UKK Series |
| Material | Shell: Flame resistant Nylon PA66 Terminal: Brass tinned |
| Rated Voltage | 690V |
| Color | Blue and Gray |
| Connection method | Screw Connection |
| Mounting Type | DIN Rail NS 35 |
| Standard | IEC 60947-7-1 |
| Logo | SMICO or Customized |
| Certification | ISO9001 |
| Sample | Free supply |
Din Rail Terminal Block Distribution Box Decription
The din rail terminal block distribution box is used to branch the main line,and connect the distribution cable or optical to the user line.Generally,it is used with the din rail for distribution cabinet,distribution box and various high voltage cabinet.
Terminal Block Distribution Box Material
Terminal: Brass tinned
Boday and Cover: Flame resistant Nylon PA66
Screw: Zinc steel,metric thread
Protection level: IP20

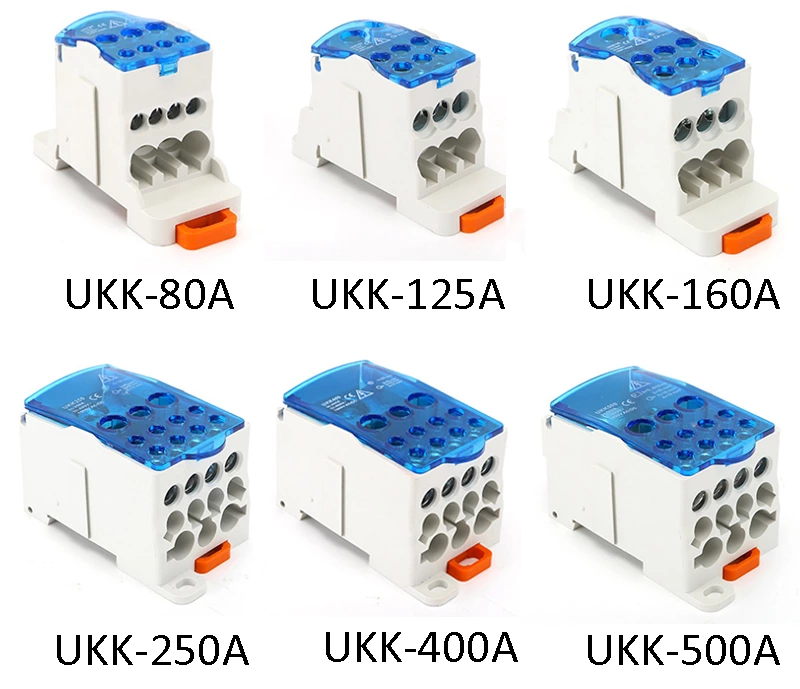

| Item No. | Current (A) |
Voltage (V) |
Conductors with starfix temules X-section (mm2) |
Hole NO. (pcs) |
Dimension(L*W*H) (mm) |
| UKK-80 | 85 | 690 IEC | Input 6 to 16 | x1 | 30*69*49 |
| Output 2.5 to 6 | x4 | ||||
| Output 2.5 to 16 | x2 | ||||
| UKK-125 | 150 | 690 IEC | Input 10 to 35 | x1 | 29*77*46 |
| Input 6 to 16 | x4 | ||||
| Output 2.5 to 16 | x6 | ||||
| UKK-160 | 200 | 690 IEC | Input 10 to 35 | x1 | 29*77*46 |
| Input 6 to 16 | x4 | ||||
| Output 2.5 to 16 | x6 | ||||
| UKK-250 | 255 | 690 IEC | Input 35 to 120 | x1 | 47*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 | ||||
| UKK-400 | 335 | 690 IEC | Input 95 to 185 | x1 | 47*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 | ||||
| UKK-500 | 520 | 690 IEC | Input 3×15.5×0.8 to 8×24 | x1 | 49*96*50 |
| Output 6 to 35 | x2 | ||||
| Output 2.5 to 16 | x5 | ||||
| Output 2.5 to 10 | x4 |
Distribution Box Din Rail Terminal Block UKK Series Feature
● The conductor is made of excellent brass, which is firm and durable, with strong corrosion resistance and good conductivity.
● The shell is made of PA material, with strong impact resistance, high temperature resistance, high strength and strong insulation performance.
● Professional manufacturer. Stable quality, long service life.
● The transparent cover can see if the cable is connected reliably.
● Simple and Safety Operating.The box is easy quick to install on the rail.
● Install on 35mm wide DIN rail or chassis mounting with screws.
