big module IP65 Clamping range KTB-C 23-28mm Matching KBL framework 042328

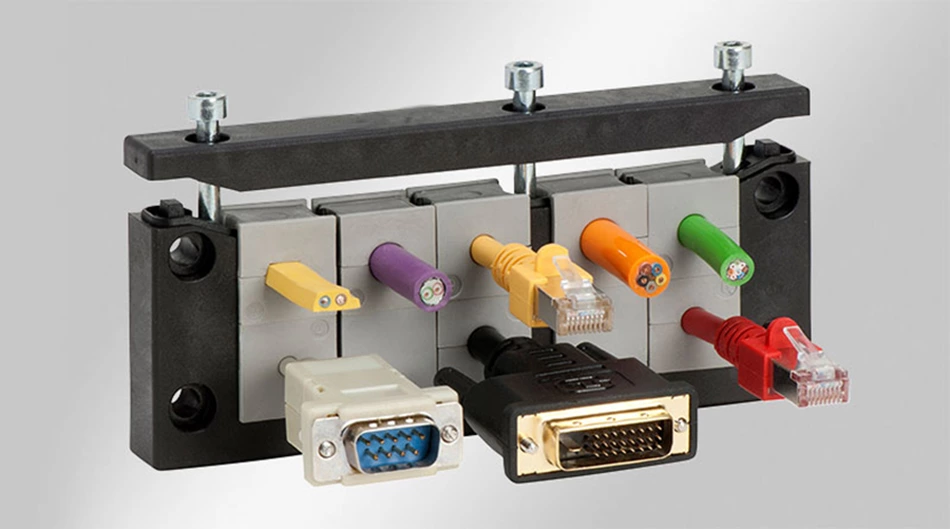

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
Type | KTB-C |
Part No. | 042328 |
Material | Elastomer |
Module color | Grey |
Flame class | UL94-V0, Self-extinguishing |
Protection degree | IP65 |
Temperature | -40°C to + 90°C ( Static) |
Properties | Halogen-free, silicone-free |
Number of cables | 1 Pcs |
Clamping range | 23-28 mm |
Use | KBL frame |
