KT 2/3 small module IP65 Clamping range 2×ø3mm Matching KBL framework 039939
- Part:
- KT 2/3
- Product Certification:
- CE
- Order No.:
- KT 2/3
- Packaging Details:
- CTNS
- Delivery Time:
- within 10-14days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month

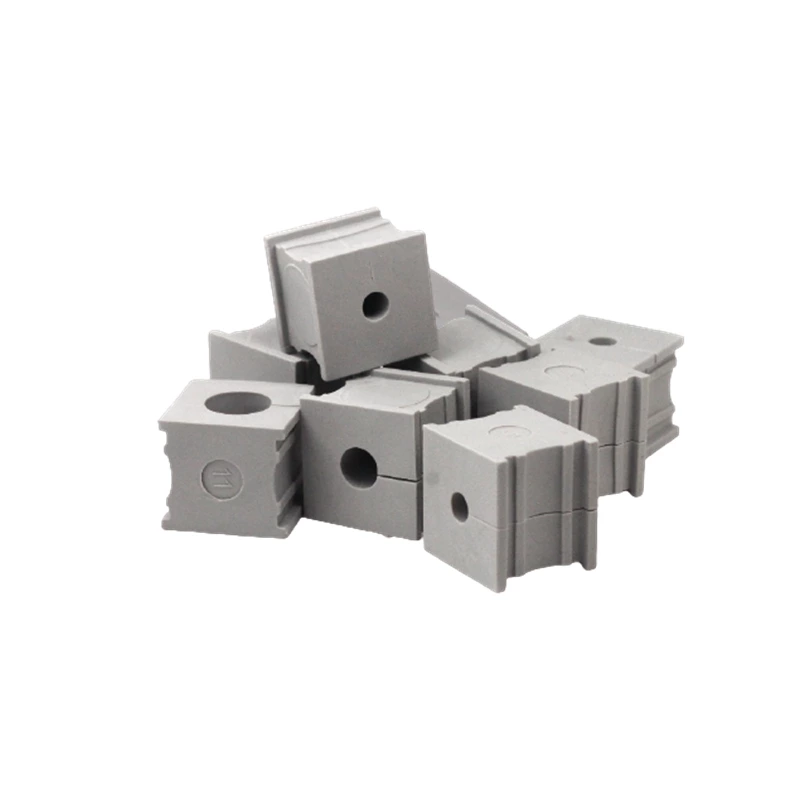

KT 2/3 small module IP65 Clamping range 2×ø3mm Matching KBL framework 039939
Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.
Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
| Type | KT 2/3 |
| Part No. | 039939 |
| Material | Elastomer |
| Module color | Grey |
| Flame class | UL94-V0, Self-extinguishing |
| Protection degree | IP65 |
| Temperature | -40°C to + 90°C ( Static) |
| Properties | Halogen-free, silicone-free |
| Number of cables | 2 Pcs |
| Clamping range | 2×ø3 mm |
| Use | KBL frame |
