IP54 UL94-V0 Cable entry system Flame class Self-extinguishing Detachable frame KBL 24/20-MT

Part:
KBL 24/20-MT
Product Certification:
CE
Order No.:
KBL 24/20-MT
Packaging Details:
CTNS
Delivery Time:
within 10-14days
Payment Terms:
T/T
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

IP54 UL94-V0 Cable entry system Flame class Self-extinguishing Detachable frame KBL 24/20-MT

IP54 UL94-V0 Cable entry system Flame class Self-extinguishing Detachable frame KBL 24/20-MT

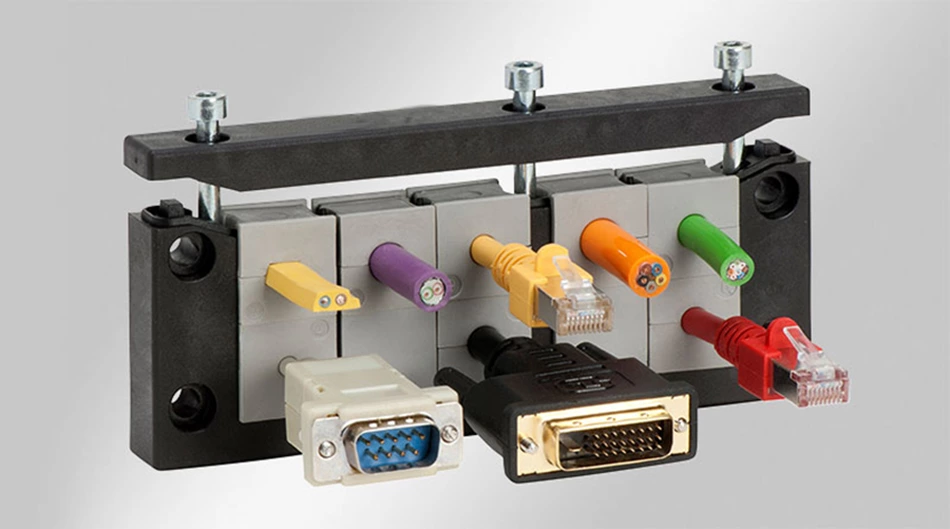

Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating.

Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.

The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.

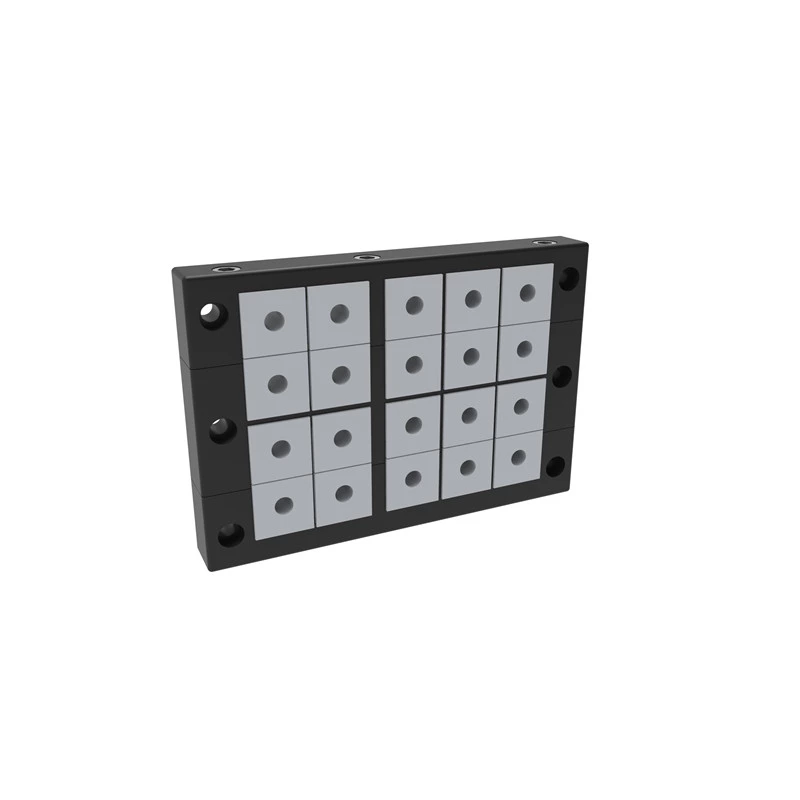

Type KBL 24-MT detachable frame(Module purchased separately)
Frame model KBL 24/20-MT
Trame part No. 042232
Material Polyamide (PA)
Flame class UL94-V0, Self-extinguishing
Protection degree IP54, With gasket and correct selection of the cable  inserts(Conform to DIN EN 60529:2000-09)
Temperature - 40°C to + 140°C (Static)
Properties Halogen-free, silicone-free
Number of KT modules small / large 20×KT( Small  module)
Cut-out dimensions(mm) 82 × 110
Height 17 mm
