HDC Modular 2 Pin 70A heavy duty Connectors Crimping type HMK70-002-MC

Part:
SO-HMK70-002-MC
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140023041
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month

HDC Modular 2 Pin 70A heavy duty Connectors Crimping type HMK70-002-MC

HDC Modular 2 Pin 70A heavy duty Connectors Crimping type HMK70-002-MC

70A modular HDC Crimp termination ,use different cable range crimping contacts that you need and use crimping tool and removal tool

70A crimping terminal:

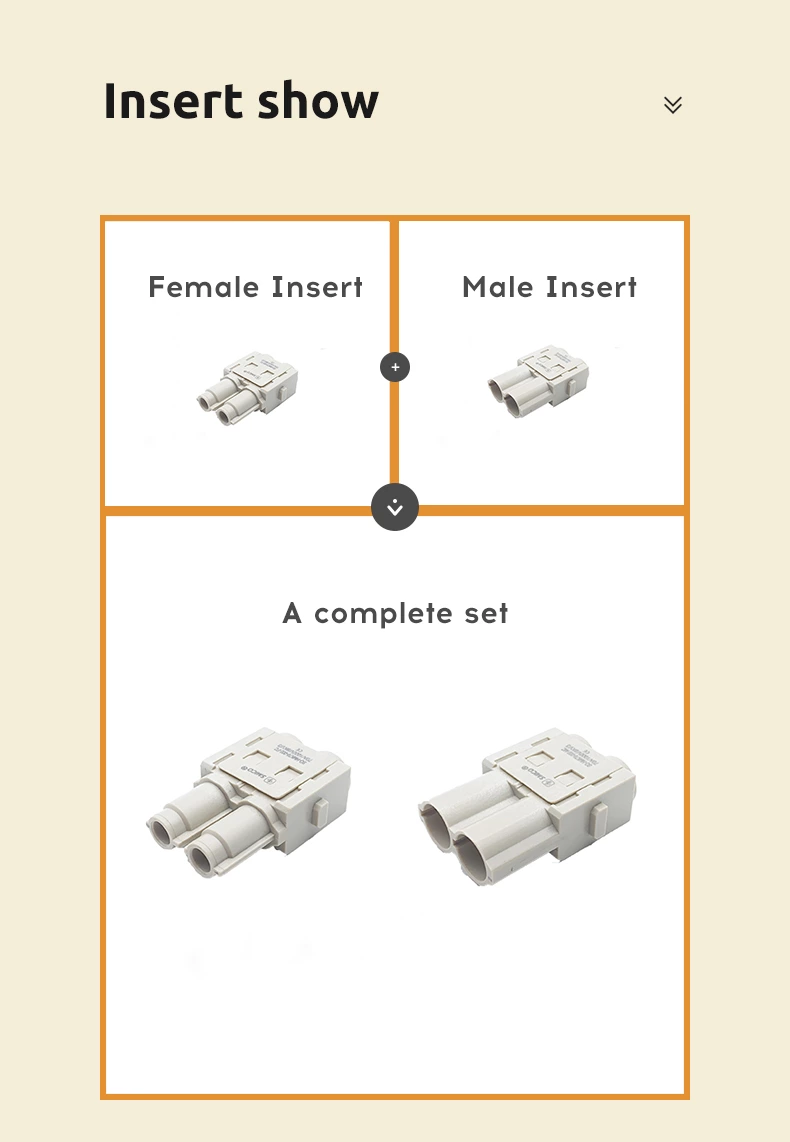

Inserts
Number of contacts 2
Electrical dataacc. to EN 61 984
---Rated current 70A
---Rated voltage 1000V
---Rated impulse voltage 8kV
-Pollution degree 3
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤0.5mΩ
Crimp terminal
---mm2 10-25mm2



HDC Modular 2 Pin 70A heavy duty Connectors Crimping type HMK70-002-MC

The H-Modular series is designed for combining different transmission media in one connector. The multifaceted system of inserts,
contacts, frames, hoods and housing fulfils individual customer requirements. To continuously enable new configurations, the
H-Modular series growths constantly.


More than 50 different modules for different transmission media are available. These cover various termination techniques. The
patented H-Modular hinged frame enables the configuration of all modules in the well-accepted H hoods and housing size 6B-24B.
Further additional solutions are available, e.g. suitable docking frames for drawer units.


Individual customer requirements can be realized. Combining various transmission media in one single connector results in lower
expenditures in installation time and production downtime. Space savings and cost saving are further benefits. The easy extension
possibilities secure a further safe design





HDC Modular 2 Pin 70A heavy duty Connectors Crimping type HMK70-002-MC
