H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

Part:
SO-H2MK-001.1-M
Number of contacts:
1
Rated current:
200A
Rated voltage conductor:
1000V
Product Certification:
UL CUL CE ROHS DMT
Order No.:
09140012663
Product Certification:
UL CUL CE ROHS DMT IEC-61984
Packaging Details:
Standard Export Cartons
Delivery Time:
Within 7 Days
Payment Terms:
L/C, T/T, Western Union, Paypal
Supply Ability:
100000 pcs per month
Download PDF
Inquiry
09140012663 rectangular insert
09140012662 heavy duty connector
200A modular heavy duty connector
H2MK-001-M heavy duty connector
industrial plug socket
09140012663 rectangular insert
09140012662 heavy duty connector
200A modular heavy duty connector
H2MK-001-M heavy duty connector
industrial plug socket

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

SMICO heavy duty connector 200A  Crimp and Axial module are compatible other brand module.Contacts can be unlocked from the mating side .

1P ,200A male crew terminal:

Inserts
Number of contacts 1
Electrical dataacc. to EN 61 984
---Rated current 200A
---Rated voltage 1900V
---Rated impulse voltage 8KV
－Pollution degree 3
Rated voltage acc. to UL 600V
Insulation resistance ≥10^10Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life -mating cycles ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance 0.3mΩ
For stranded wire according to IEC 60 228 Class 5
Screw terminal
---Wire gauge 25-70mm2
---AWG 2-0
---Hexagonal driver SW 5
---Stripping length 16mm
---Tightening tourque
mm2 25 35 50 70
N.m 8 8 9 10



H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

The advance for modular heavy duty connector :

1. Combination of different connectors to one unit

2.Shorter installation times

3.Important space saving

4.Save money for components as well as for the whole industrial site

5.Future safe design due to easy extensions

The Modular series heavy duty connector  is designed for combining different transmission media in one connector. The multifaceted system of inserts, contacts, frames, hoods and housings as well as accessories fulfils individual customer requirements. The  customer can choose between more than 100 different modules. These are suitable for different transmission media and cover various termination  techniques. The patented hinged frame enables the configuration of all modules in the well-accepted hoods and housings.

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

SMICO Heavy duty connectors Applications :

  • Machinery
  • Automation
  • Robotics
  • Rail
  • Energy Distribution
  • Renewable Energy
  • Construction Machinery
  • Professional Light and Sound

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

H2MK-001-M 200A axial module heavy duty connector 09140012663 ,09140012662

Feedback
Recommended Products

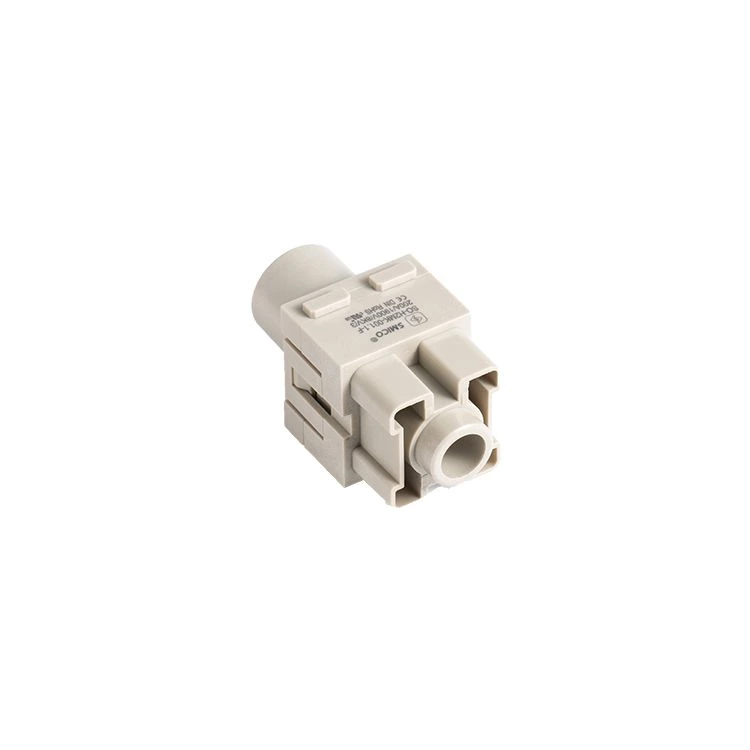

09140012763 H2MK-001-F heavy duty connector
H2MK-001-F 200A screw Heavy Duty Connector 09140012763, 09140012762

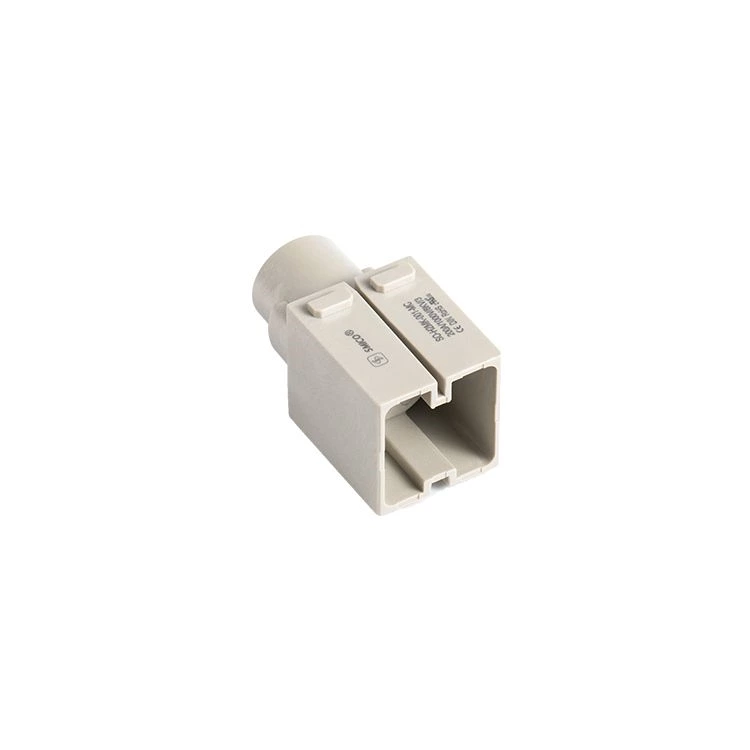

09140013001 connector
09140013001 SO-H2MK-001-MC 200A modular Heavy Duty Connector

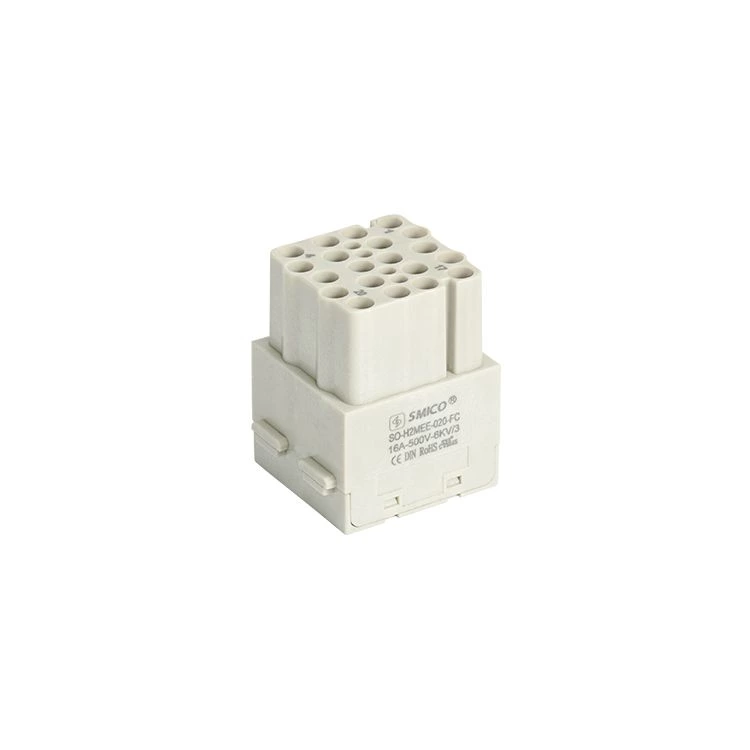

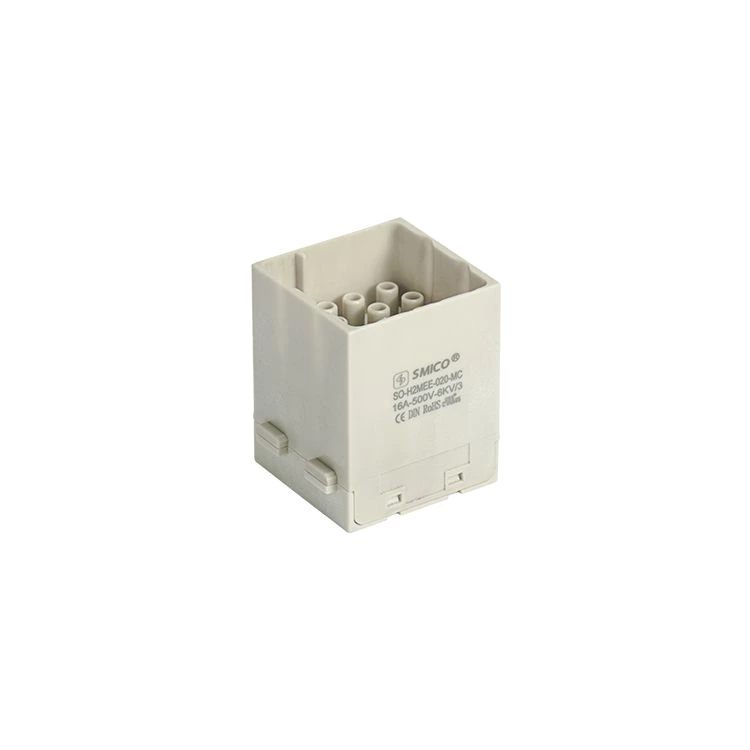

HM-H2MEE Heavy Duty Electrical Connector High Contact Density 20 Pin
