Heavy duty connector 216 pins 10A weidmuller connectors

Heavy duty connector 216 pins 10A weidmuller connectors

Heavy duty connector 216 pins 10A weidmuller connectors  more wires collected in one connector and each to install , quickly to find the wire that you want to change

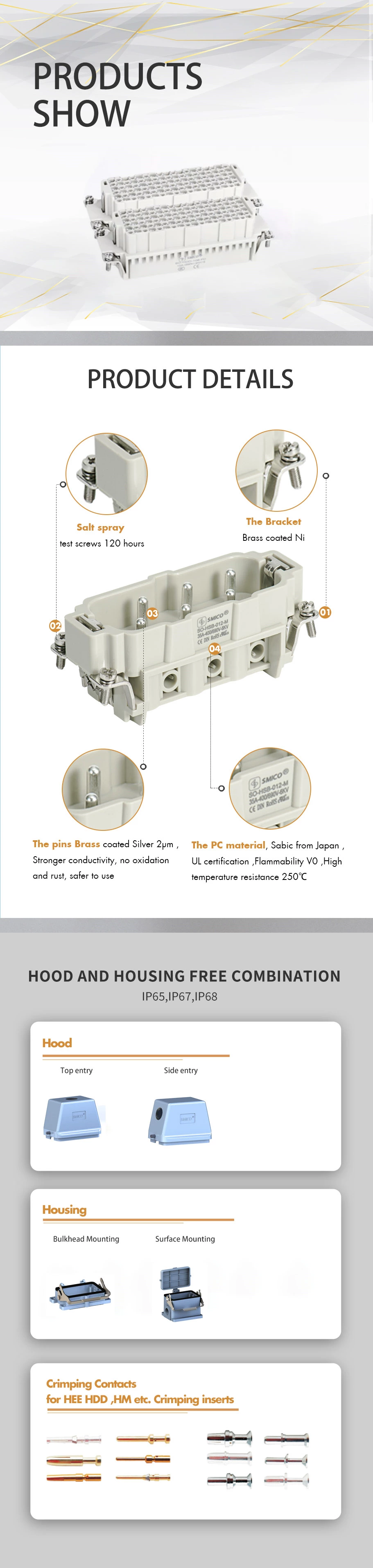

216 Poles + PE, 10 A Female Crimping Terminal :

SMICO heavy duty connector can match the following interchangeable.

The hood and housing for H48B .

Specializing in machinery, bid farewell to "Farewell"-SMICO releases new compact heavy-duty connectors
Indeed, heavy-duty connectors, which originated from the custom-developed train carriage connection requirements in the 1950s, have been widely used in industry due to their high reliability and ruggedness. But today, the application environment of heavy-duty connectors has changed. In the connection scenarios of most mechanical equipment, the design of traditional heavy-duty connectors has been too wasteful.

        "Fanxue"? Or is it overdesign?

         In the early mechanical equipment market, HDC plug-in requirements and applications also borrowed from train HDC products, and they are generally used today.

         But for a long time, the matching degree and cost performance of many HDC products in the machinery market have not been satisfactory. This is also a problem caused by industry gaps. Take the equipment in the rail transit industry as an example. Their application environment is much higher than that of mechanical equipment. The parameters that many heavy-duty connectors meet greatly exceed the requirements of mechanical equipment, such as:
       ●Expensive turning round pins equipped to meet the high vibration requirements of the track;
       ●The long-term frequent replacement of carriages or train equipment requires a high mating life of 500 times;
       ●Wide temperature range, long-term salt spray corrosion resistance and high IP protection required by the harsh outdoor environment of the train;
       ●Impact resistance required to deal with accidental impact of rocks during track operation...

       However, the conditions for mechanical application are not so harsh, which means that customers must pay additional costs to purchase these products with relatively surplus designs. It is not so much "Versailles" as it is the result of overdesign.

　　 was born for mechanical connection, new products are here!

　　 Is there no tailor-made HDC with higher cost performance? SMICO does not believe in the "Fanxue" set. After in-depth understanding of the pain points of customers in the machinery market, SMICO has reduced the complexity to simplicity. SMICO has recently released a new compact heavy-duty connector. This is a patented product that SMICO launched in the world for the needs of mechanical customers, carefully designed.
First of all, it replaces the expensive turning round pins with reed pins that meet the requirements of mechanical vibration; and replaces the silver-plated round pins that meet the 500-time high-plugging requirements with tin-plated reeds that meet the requirements of 50 mating cycles. It is worth mentioning that the size of the new product is reduced by 20% compared with the traditional HDC, which saves the customer's panel installation space and automotive-grade aluminum housing, which is used to meet the impact requirements such as accidental drops in mechanical applications. SMICO meets the application requirements of mechanical customers with more reasonable designs by adjusting stringent parameters.

　　In terms of operational safety, its patented independent grounding point is arranged in the shell, and it is directly connected to the metal shell to protect the electrical safety of the person. In addition, the number of fixing screws has been reduced by half, which greatly reduces the time cost of installation.

　　 High cost performance, bid farewell to "Versailles"

Through the adjustment of configuration parameters and component materials that are more suitable for mechanical users, Weidmüller has solved the problem of overcapacity in HDC design, bid farewell to the redundant "Fanxue", and the relative price is more attractive, allowing customers to never forget No need to spend more cost for redundant performance. It is professional tailor-made to create such a cost-effective plug-and-play connection solution.

　　In terms of customer experience, this product is available in top-out and side-out models. Weidmüller can also provide kit ordering services to simplify customer inventory management. Efficient, convenient, and reliable-SMICO's new compact heavy-duty connector has now landed in the mechanical application market. The design is not redundant and not excessive. It is specialized in machinery and will take you farewell to "Fair Learning"
