HD Industrial multi pin connectors 80 copper pins
- Part:
- SO-HD-080-MC
- Number of contacts:
- 80
- Rated current:
- 10A
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09210403001
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month

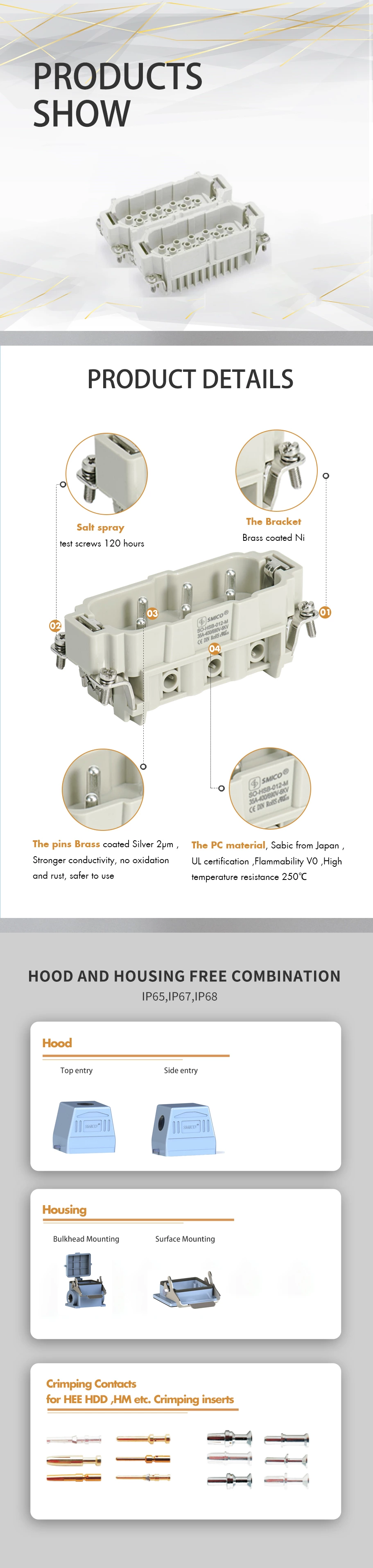

HD Industrial multi pin connectors 80 copper pins
HD Industrial multi pin connectors 80 copper pins used by 2x40 PINS , different combination wiring
80Poles + PE, 10A Male Crimping terminal :
| Inserts | Suitable Shell:32BHood/Housing |
| Number of contacts | 80 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL/CSA | 600V |
| ---Rated voltage for wrap terminal acc. to CSA | 2A 30V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H32B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HD-080-MC | SO-080-FC |
| H | 09210403001 | 09210403101 |
| ILME | CDM 40 | CDF 40 |
| TE | ||
| LAPP EPIC | 11.2652 | 11.2662 |
| PHOENIX | 1584415 | 1584428 |
| MOLEX | ||
| WEIDMULLER | HDC HD 40 MC | HDC HD 40 FC |
| WIELAND | 73.710.4058.0 | 73.700.4058.0 |
| AMPHENOL |
Heavy-duty connectors, also known as heavy-duty sockets, are widely used in construction machinery, textile machinery, packaging and printing machinery, tobacco machinery, electric locomotives and petrochemical electrical equipment that require electrical and signal connections.
Advantages of heavy-duty connectors
1. Realize pre-installation, pre-installation of a large number of and complex circuits, which can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
2. The heavy-duty connector provides a highly integrated connection, and the rich combination methods maximize the effective utilization of the equipment space.
3. Heavy-duty connector The connector conveniently and efficiently realizes the modular structure of each functional template block of the equipment, so that the equipment can be transported, installed, maintained and repaired conveniently and safely. Connectors are widely used in the field of power transmission and distribution.
4. The high protection level (IP65, IP68) provided by the heavy-duty connector is incomparable to the advantages of the equipment connection system under the harsh environment. Provide effective protection in harsh environments such as sand, rain, cold, ice and snow, and oil pollution.
