Energy Storage Connector ESP-120A-25-OR-00
- Part:
- ESP-120A-25-OR-00
- Number of contacts:
- 1
- Rated current:
- 120A
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month

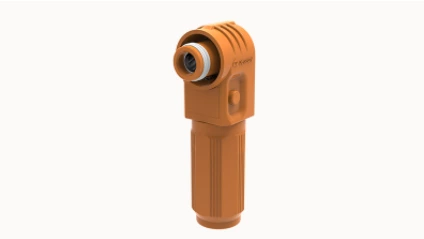

Energy Storage Connector ESP-120A-25-OR-00
Energy storage connector, Product range: ESP plug, color: orange, Wire cross section: 25 mm², Rated voltage: 1500V, Rated current: 120 A, Connection method: crimped, Contact type: hole type, min. Cable diameter: 9 mm, Max. Cable diameter: 10.5 mm

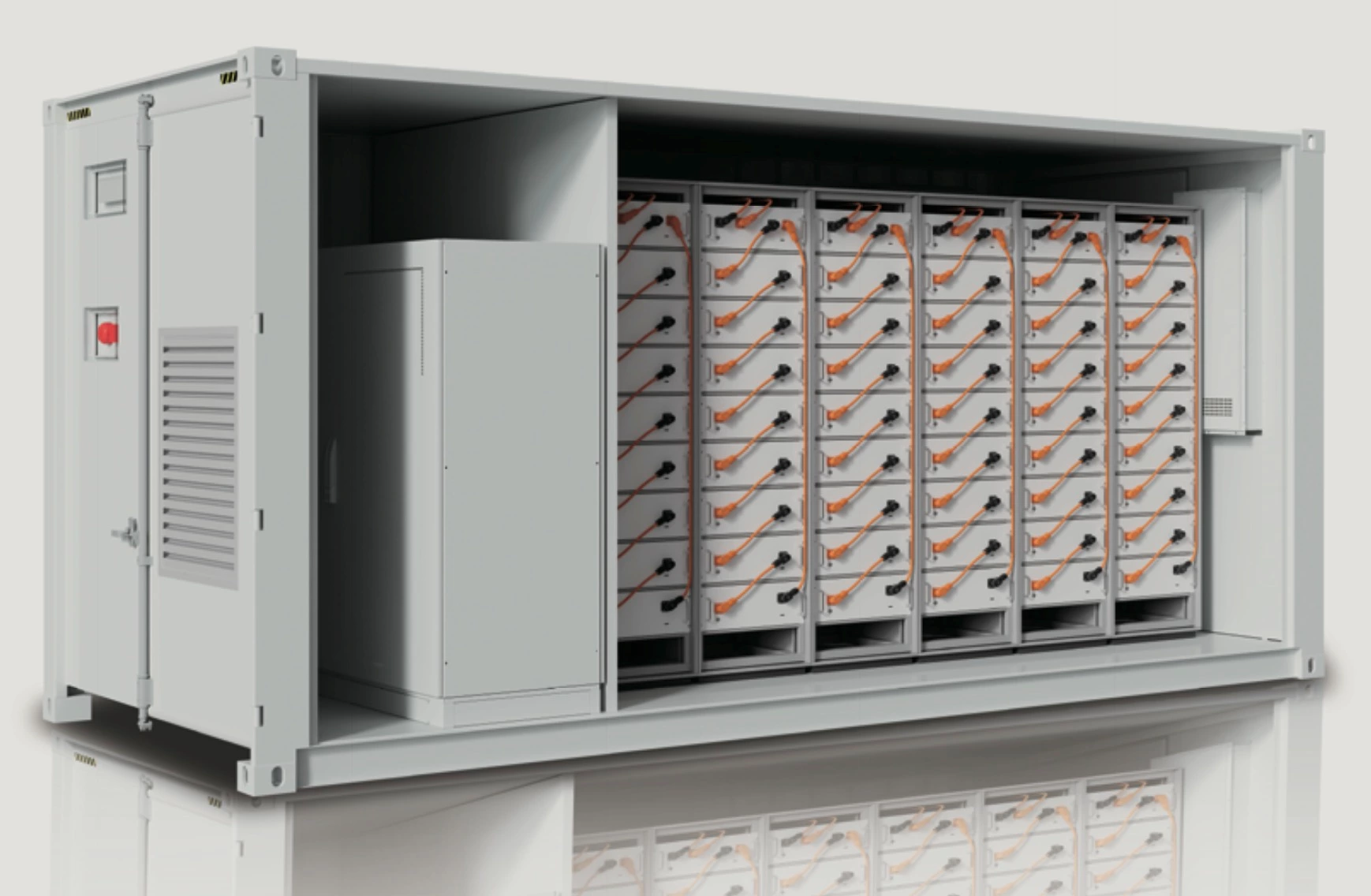

Connectors for energy storage systems: Connection technology for busbars and battery poles
Install your energy storage systems quickly, safely, and cost-effectively for applications up to 1,500 V – with pluggable battery connections via busbar connection or via battery pole connector. Benefit from the advantages of both connection technologies for front or rear connection.
Battery-pole connectors for free wiring
Device and cable connectors that are protected against polarity reversal are ideal for use in energy storage systems. Featuring a rotatable design, touch protection, and mechanical coding, the connectors provide a high degree of flexibility and safety when it comes to connecting battery poles.
- Can be rotated 360°: ideal for flexible cable outlets
- No incorrect plugging: battery connection protected against polarity reversal by mechanical coding
- Safe installation: touch-protected battery poles even when not plugged in
- Various color versions: facilitates identification of battery poles
- Flexible installation with different device connection technologies
Product advantages
☑ Exclusive patents
☑ IP67 protection
☑ With safety locking latch
☑ The plug can rotate 360°after assembled
☑ The socket is with hand-proof protection
☑ With color-coded and mechnism-coded desgin avoiding misplug
Busbar Screw Crimp Busbar/Screw
Wiring data
| Cable sectional area | 4AWG(25mm²） |
| Number of connections | 1 |
| Cable outer diameter | 9~10.5mm |
| Cable stripping length | 13~14mm |
| Wiring mode | Crimp |
Environment condition
| Protection grade (pair plug) | IP67 |
| Ambient temperature (operation) | -40°C ~ +125°C |
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
| Altitude | 2000m |
Mechanical properties
| Plugging times | 100 |
| Insertion force | <60N |
| Pullout force | >10N |
Material data
| Insulating material | Nylon |
| Clamping ring material | Silicone |
| O-ring material | Silicone |
| Halogen-free | Compliance with standards |
| Environmental protection matters | REACH/RoHS compliant |
| Contact material | Copper alloy |
| Shell color | Orange |
| Flammability rating | UL94V-0 |
Electrical parameters
| Pollution level | 3 |
| Rated current | 120A / UL DC1500V |
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
